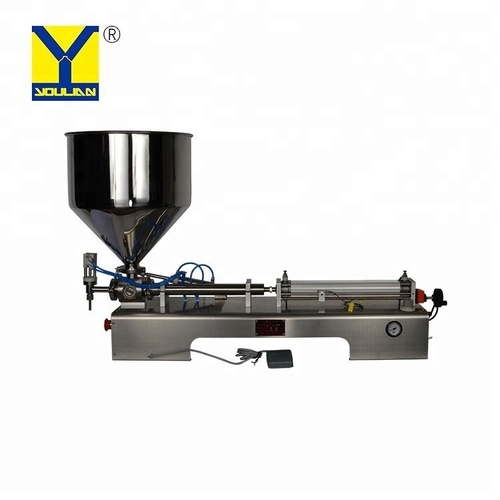

G1WGD Semi Automatic Liquid And Paste Filling Machine 50-500 ml Single Head(Horizontal)

G1WGD Semi Automatic Liquid And Paste Filling Machine 50-500 ml Single Head(Horizontal)

Product Details:

  • Product Type Paste filling machine
  • Material honey, chili sauce, tomato sauce, toothpaste
  • Application Food, Beverage
  • Packaging Material Wood
  • Computerized No
  • Automatic Grade Semi-Automatic
  • Control System Frequency Speed Control
  • Supply Ability : 200 Carton Per Year
492000 INR/Carton
X

Price And Quantity

  • 492000.00 - 492000.00 INR/Carton
  • 492000 INR/Carton
  • 1 Carton

Product Specifications

  • Food, Beverage
  • 1 year
  • 60Kg Kilograms (kg)
  • Frequency Speed Control
  • 220/110V 50/60Hz Volt (v)
  • Other
  • Silver
  • High Performance, Simple Control
  • honey, chili sauce, tomato sauce, toothpaste
  • Semi-Automatic
  • 1250*4500*460 Millimeter (mm)
  • Paste filling machine
  • No
  • Wood

Trade Information

  • NINGBO PORT
  • Telegraphic Transfer (T/T)
  • 200 Carton Per Year
  • 30 Days
  • Contact us for information regarding our sample policy
  • carton
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • CE

Product Description

Description:

The series of filling machine has widely used in the fields such as pharmaceutical, cosmetic, food and special industries with the different range. For liquid and high viscosity fluid and paste, the kind of machine is the best choice.

Driven by a cylinder and piston made from materials with one-way valves control the flow of materials and also magnetic reed switch control cylinder itinerary can control the filling volume.

Parameters:


Model

G1WGD

Name

 filling machine

Filling Range

5-100ml

10-280ml

1.7-17 oz(50-500ml)

3.38-33.8 oz(100-1000ml)

300-2000ml

500-2800ml

1000-5000ml

Capacity

10-20 PCS /min

Hopper capacity

7/10 US gal 30L/40L      (Can be customized)

Working Pressure

0.4-0.6Mpa

Filling Accuracy

±1%

Power supply

220V/110V 50HZ/60HZ

Power

50W

Machine size (L*W*H)



(950*320*280)  5-100ml

(1170*380*380) 10-280ml

(1150*320*350) 50-500ml

(1150*320*380) 100-1000ml

(1230*370*380) 300-2000ml

(1270*400*360) 500-2800ml

(1330*400*430) 1000-5000ml

Package

Export Carton Case

Warranty

1 year
