G2LGD Liquid Filling Machine
80000 INR/Carton
Product Details:
- Product Type Filling machine
- Material stainless steel
- Application Beverage, Chemical, Food, Medical
- Packaging Material Plastic, Wood
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Frequency Speed Control
- Supply Ability : 1000 Carton Per Year
- Click to view more
X
Price And Quantity
- 80000 INR/Carton
- 80000.00 - 80000.00 INR/Carton
- 1 Carton
Product Specifications
- 1390*490*1000 Millimeter (mm)
- Pneumatic
- 1 year
- Semi-Automatic
- Beverage, Chemical, Food, Medical
- Frequency Speed Control
- stainless steel
- High Performance
- Filling machine
- Plastic, Wood
- 220V/50HZ Volt (v)
- No
- 75 Kilograms (kg)
- 0-80 Pcs/min
Trade Information
- NINGBO PORT
- Telegraphic Transfer (T/T)
- 1000 Carton Per Year
- 30 Days
- Contact us for information regarding our sample policy
- cartons
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
- CE
Product Description
Description:

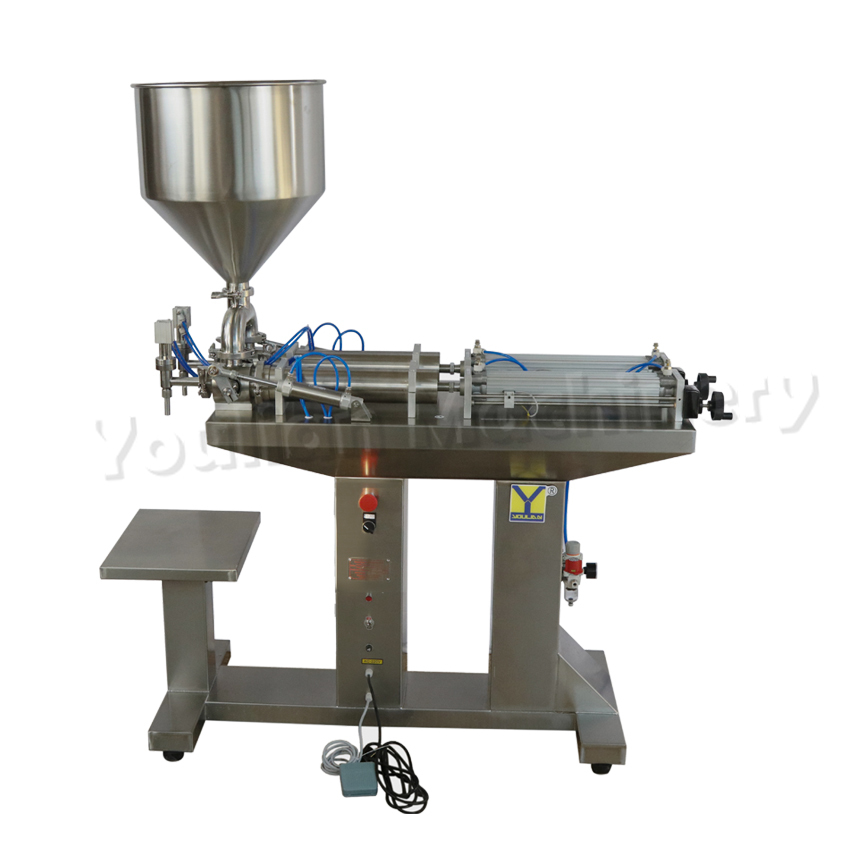

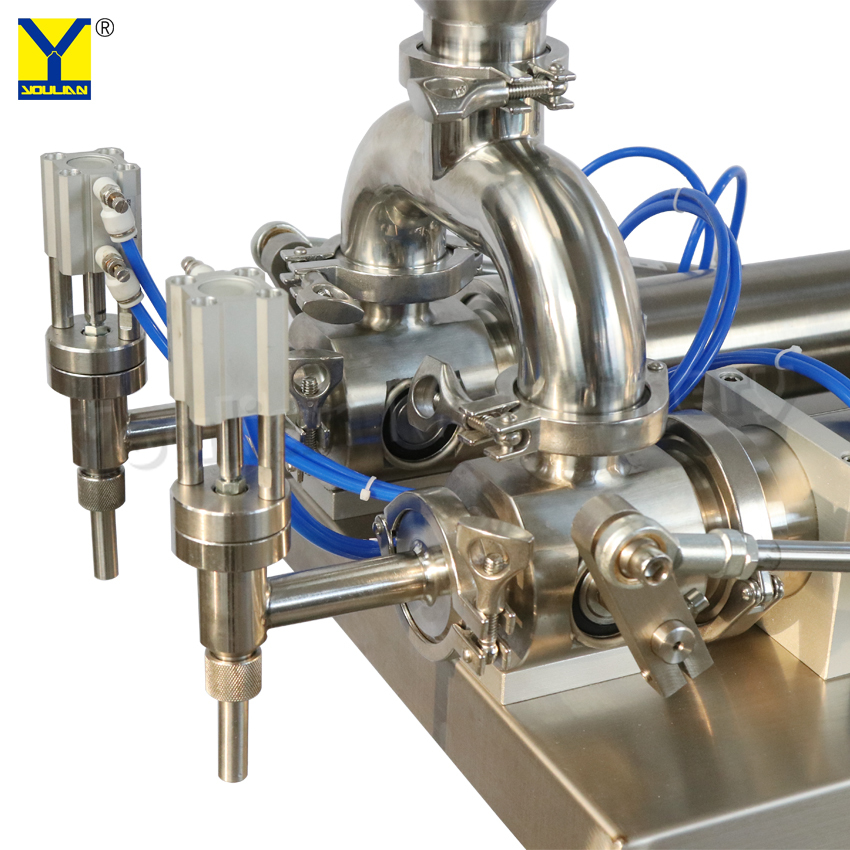

This semi-automatic double head piston filler paste filling machine driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
Parameters:
| Model | G2LGD |
| Name | filling machine |
| Filling Range | 5-100ml 10-280ml 50-500ml 100-1000ml 500-2800ml 1000-5000ml |
| Capacity | 10-30 PCS /min |
| Hopper capacity | 30L/40L(Can be customized) |
| Working Pressure | 0.4-0.6Mpa |
| Filling Accuracy | 1% |
| Power supply | 220V/110V 50HZ/60HZ |
| Power | W |
| Machine size (L*W*H) | ( ) 5-100ml ( 1330*450*1030) 10-280ml (1500*520*1100 ) 50-500ml (1500*520*1100 ) 100-1000ml ( ) 300-2000ml ( ) 500-2800ml (1550*840*1150)1000-5000ml |
| Package | Export Carton Case |
| Warranty | 1 year |
Product Feature:
> Material contact parts can be customized 316L stainless steel material, so as to obtain higher corrosion resistance performance and GMP requirements.
> The hopper can be equipped with functions of stirring, heat preservation and so on, which can meet the production needs of customers.
> The piston can be selected with PTFE material (without O-ring), so as to obtain stronger wear resistance and higher corrosion resistance.
> It is easy to disassemble, assemble and clean, and can be operated auto manually function.
Application:
This filling machine is suitable for quantitative filling of liquid, paste and other substances in chemical, food, daily chemical, pharmaceutical, pesticide, cosmetics lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass cement, etc.
