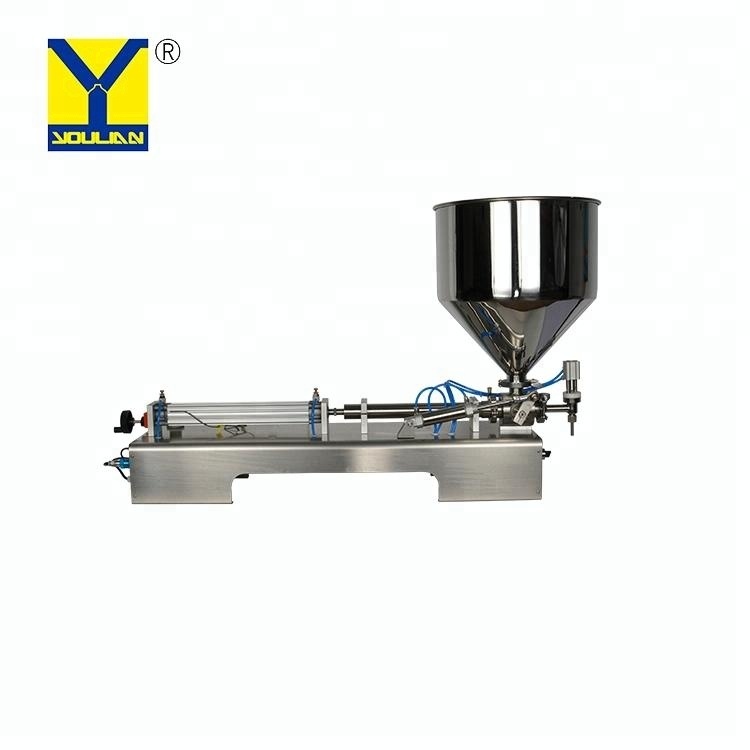

Semi Automatic Liquid And Paste Filling Machine
492000 INR/Carton
Product Details:
- Product Type Paste filling machine
- Material honey, chili sauce, tomato sauce, toothpaste
- Application Beverage, Food
- Packaging Material Wood
- Computerized No
- Automatic Grade Semi-Automatic
- Control System Frequency Speed Control
- Supply Ability : 200 Carton Per Year
- Click to view more
X
Price And Quantity
- 1 Carton
- 492000 INR/Carton
- 492000.00 - 492000.00 INR/Carton
Product Specifications
- Paste filling machine
- Silver
- Wood
- Semi-Automatic
- 60Kg Kilograms (kg)
- 1250*4500*460 Millimeter (mm)
- No
- 1 year
- honey, chili sauce, tomato sauce, toothpaste
- Simple Control, High Performance
- 220/110V 50/60Hz Volt (v)
- Beverage, Food
- Other
- Frequency Speed Control
Trade Information
- NINGBO PORT
- Telegraphic Transfer (T/T)
- 200 Carton Per Year
- 30 Days
- Contact us for information regarding our sample policy
- carton
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
- CE
Product Description
Description:
The series of filling machine has widely used in the fields such as pharmaceutical, cosmetic, food and special industries with the different range. For liquid and high viscosity fluid and paste, the kind of machine is the best choice.
Driven by a cylinder and piston made from materials with one-way valves control the flow of materials and also magnetic reed switch control cylinder itinerary can control the filling volume.
Parameters:
| Model | G1WGD |
| Name | filling machine |
| Filling Range | 5-100ml 10-280ml 1.7-17 oz(50-500ml) 3.38-33.8 oz(100-1000ml) 300-2000ml 500-2800ml 1000-5000ml |
| Capacity | 10-20 PCS /min |
| Hopper capacity | 7/10 US gal 30L/40L (Can be customized) |
| Working Pressure | 0.4-0.6Mpa |
| Filling Accuracy | ±1% |
| Power supply | 220V/110V 50HZ/60HZ |
| Power | 50W |
| Machine size (L*W*H)
| (950*320*280) 5-100ml (1170*380*380) 10-280ml (1150*320*350) 50-500ml (1150*320*380) 100-1000ml (1230*370*380) 300-2000ml (1270*400*360) 500-2800ml (1330*400*430) 1000-5000ml |
| Package | Export Carton Case |
| Warranty | 1 year |
